Product Description

This is a resin plate holder that can be installed on MBC original racks.

The short size of the rack is perfect for storing small plates and barbell collars , and the tool-free bolt-on system makes it easy to add extra storage space to your rack.

Because it is made of resin, the plate slides easily and there is no need to worry about the surface paint peeling off.
You can choose from three types: **the 12cm type, the 19.5cm type, and an **extension kit** that converts the 12cm type to the 19.5cm type.

specification

• Total length of resin part : 120mm (12cm type), 195mm (19.5cm type)
• Resin part diameter : 48.5mm
• Resin part material : POM resin (high durability, impact resistance, abrasion resistance)
• Country of Manufacture : Japan
• Sales format : Pair (2 pieces)
• Accessories : Black bolts for installation
• Processing : Precision machining
• Shipping : Free

Set contents

12cm type

• Resin short plate holder 12cm x 2
• Installation black bolts M20 x 150mm x 2

19.5cm type

• Resin short plate holder 12cm x 2
• Resin extension parts 7.5cm x 2
• Installation black bolts M20 x 240mm x 2

*The resin part of the 19.5 cm type is separate.

Extension kit (converts 12cm to 19.5cm)

• Resin extension parts 7.5cm x 2
• Installation black bolts M20 x 240mm x 2
• *The extension kit does not include nuts or washers.

Installation Method

1. Bolt installation

   • Attach the included installation bolts to the rack posts. Be sure to attach the flat washers and spring washers correctly in the positions shown in the photo.

2. Tighten the bolts

   • Use a tool (30mm wrench or adjustable spanner) to tighten firmly until the spring washer is flat.

3. Equipped with a resin holder

   • Screw the plastic holder onto the mounting bolt by hand to secure it firmly in place.

※Image example:

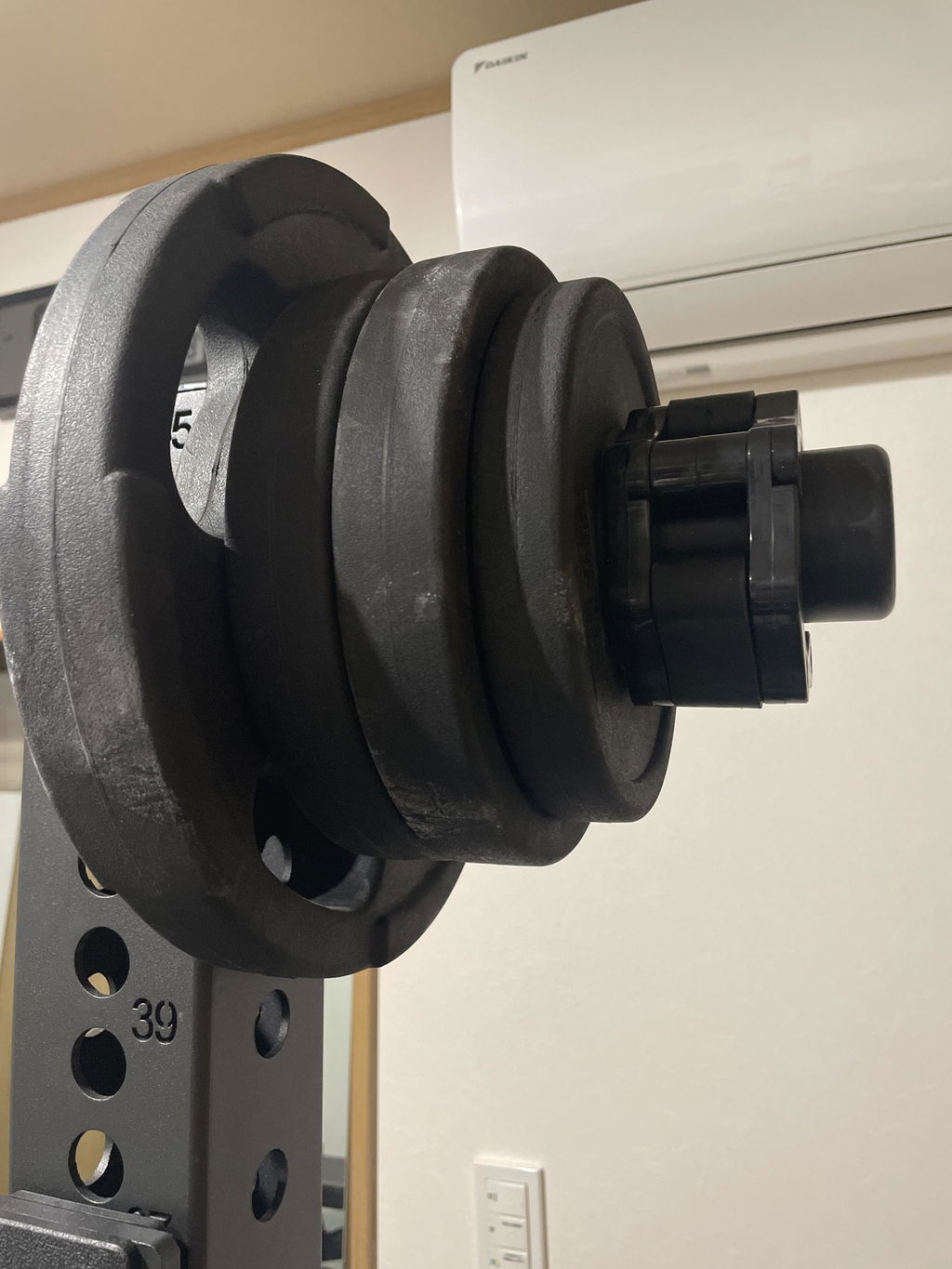

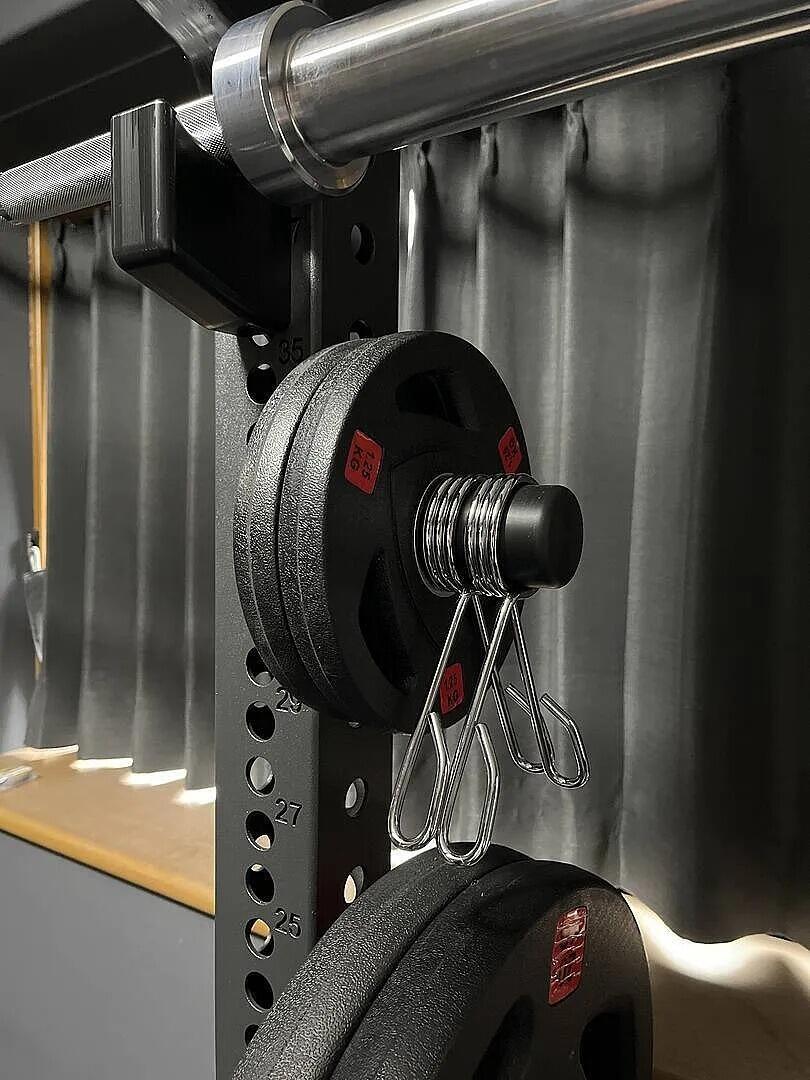

• Installation image
  •
• Installation Process

Note

• This product is for use with small plates and barbell collars only . Do not place weights on, stand on, or hang from it.
• Be sure to push the plates and collars all the way in and not to the outer edge of the holder.
• Cannot be used with Squat Stand Standard 180cm or MBC Training Combo Rack.
• Since this product cannot be installed on racks made by other companies, we cannot accept returns due to the product being "incapable of being installed."
• Product specifications and options are subject to change without notice.
